血管插管

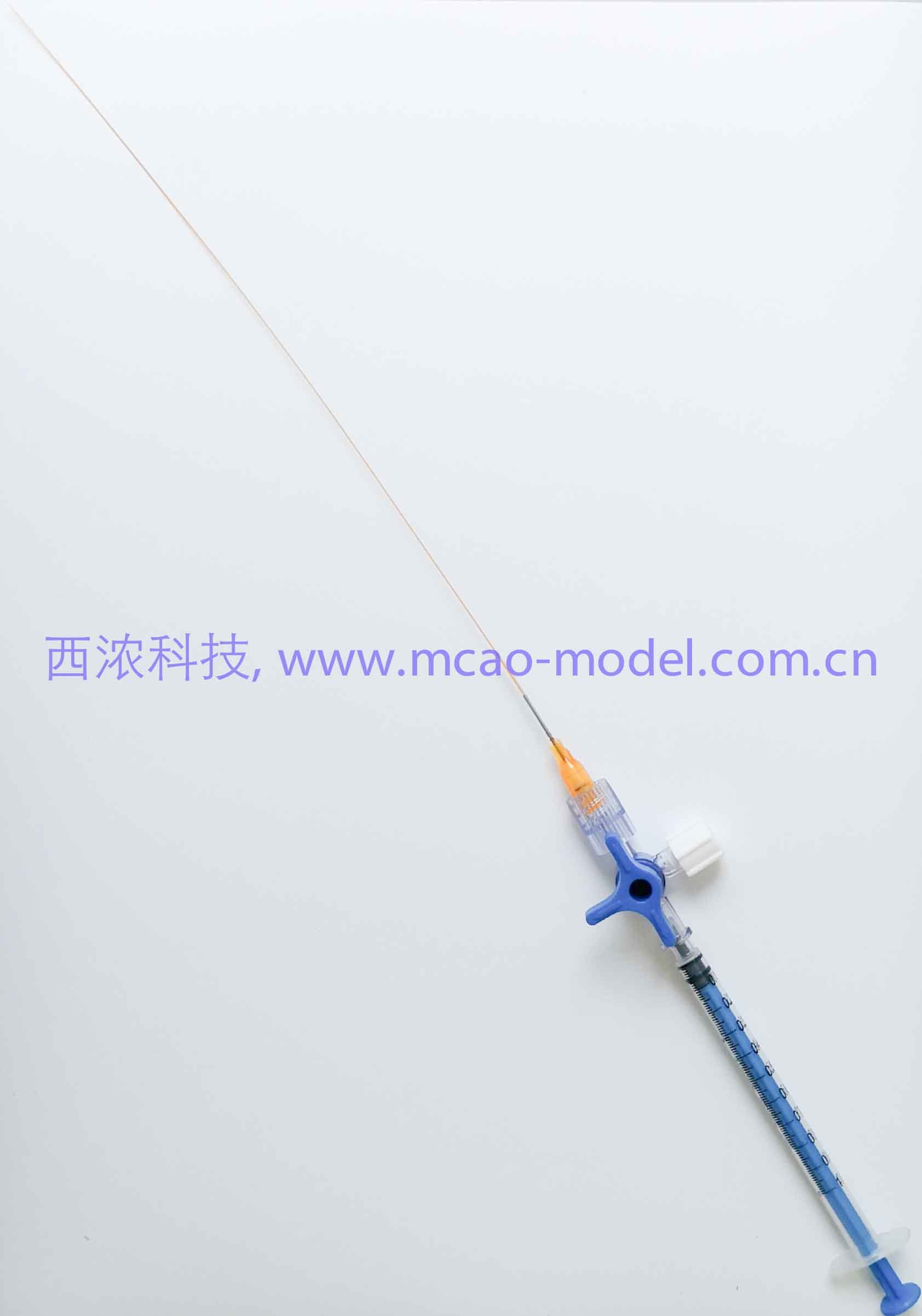

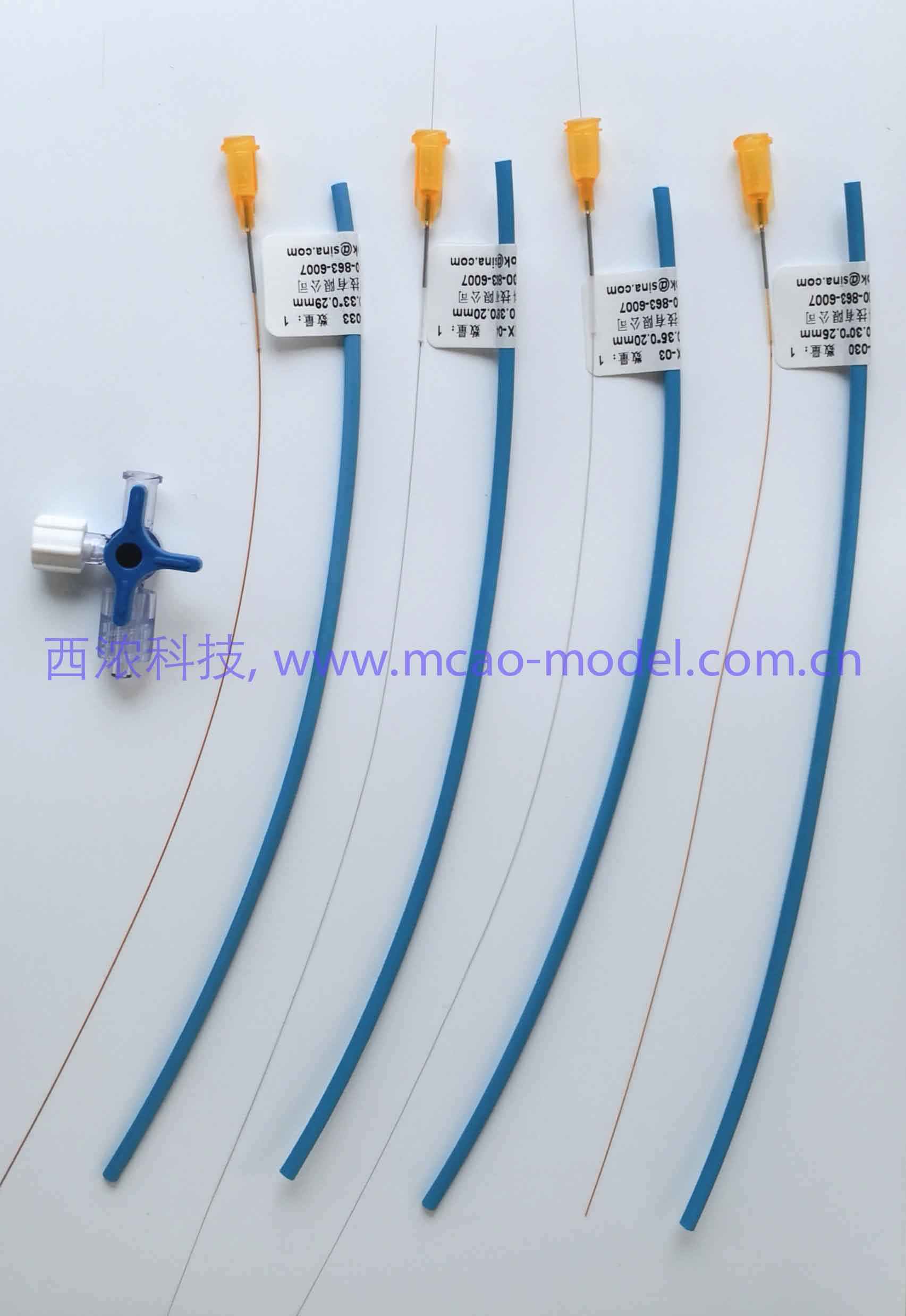

描述：PE导管(ployethylene,聚乙烯)、PU导管（聚氨酯）、SIL导管（硅胶）、PI导管（聚酰胺）和TF导管（特氟龙），在生命科学领域被广泛应用。我们公司具有多种规格的动物实验用毛细管（如下表），其中包括国际上通用的PE10、PE20、PE50等规格，这些毛细管可用在微透析、动物动脉插管、静脉插管、胆管插管、皮下植入埋管、侧脑室埋管、门静脉插管等实验中，可以和注射器（针）、导管、微透析连接头等配合使用。
PU导管：Micro-Renathane® is the most blood-compatible tubing ever made. This polyurethane based catheter tubing is exceptional for implantation studies in experimental animals. Offering extended catheter life this tubing reduces the probability of intravascular thrombosis. Scanning electron micrographs (approx. 10,000X) illustrate the dramatic difference between Renathane tubing and conventional vinyl tubing. After use in hemodialysis, Renathane showed significantly fewer surface deposits of platelets, proteins, trapped red cells and other blood elements than other tubings.
SIL导管：RenaSil™ is a Platinum cured silicone tubing that is inert and contains no harmful leachable plasticizers. It is essentially non-reactive. The tubing will maintain its flexibility through a temperature range of -100°F to 500°F. Storage temperature and humidity have virtually no effect on silicone tubing, therefore shelf life is unusually long. This tubing may be autoclaved and re-sterilized without altering physical characteristics. RenaSil™ meets the standards of the US Pharmacopoeia, Class IV and CRF 21 Part 177.2600 for food additives. All sizes are packaged clean, without talc and sealed in polyethylene bags.
|
材质 |
规格 |
外径＊内径 |
| PE | PE-01 | 0.254*0.127 |
|
PE |
PEX-03 |
0.35*0.20mm |
|
PE |
PEX-04 |
0.38*0.20mm |
|
PE |
PEX-01 |
0.50*0.25mm |
|
PE |
PEX-02 |
1.00*0.50mm |
|
PE |
PE10 |
0.61*0.28mm |
|
PE |
PE20 |
1.09*0.38mm |
|
PE |
PE25 |
0.91*0.46mm |
|
PE |
PE50 |
0.96*0.58mm |
|
PE |
PE60 |
1.20*0.80mm |
|
PU |
MRE033 |
Micro-Renathane® .033”*.014”（0.84mm*0.36mm) |
| PU | BC-3P |
0.037”*0.023”（0.9mm*0.6mm) |
|
PU |
MRE025 |
Micro-Renathane® .025”*.012”(0.64mm*0.30mm) |
|
PU |
MRE010 |
Micro-Renathane® .010”*.005”(0.25mm*0.13mm) |
|
SIL |
SIL025 |
RenaSil Silicone Rubber Tubing .025”*.012”(0.64mm*0.30mm) |
|
SIL |
SIL037 |
RenaSil Silicone Rubber Tubing .037”*.025” (0.94mm*0.64mm) |
|
SIL |
SIL047 |
RenaSil Silicone Rubber Tubing .047”*.025” (1.19mm*0.64mm) |
|
TF |
TF060 |
0.60*0.30mm |
| TF | TF068 | 0.68*0.38 |
| TF | TF076 |
0.76*0.46 |
| TF | TF086 | 0.86*0.56 |
|
TF |
TF095 |
0.95*0.50mm |
|
TF |
TF100 |
1.0*0.6mm |
|
PI |
PI018 |
0.18*0.14 mm |
|
PI |
PI020 |
0.20*0.15 mm |
|
PI |
PI025 |
0.25*0.20 mm |
|
PI |
PI030 |
0.30*0.25 |
|
PI |
PI033 |
0.33*0.29 mm |
|
PI |
PI043 |
0.43*0.30(?)mm |
